Water Softener (Ion Exchange Softening System)
جهاز تليين المياه بنظام التبادل الأيوني
Product Description
Hardness scale is one of the fastest ways to reduce boiler, chiller and RO performance, so DSTC sizes water softeners around the site’s hardness load and operating hours. We provide the Clack WS1 control valve, softening resin, FRP tank and brine tank as one matched package, with sizing support, installation guidance and ongoing replacement resin and softener salt supply.
For quotation, send feed water hardness, required soft-water flow (m3/h), daily volume, operating hours, whether you need continuous supply (simplex or twin/duplex), inlet pressure and delivery city.
Overview

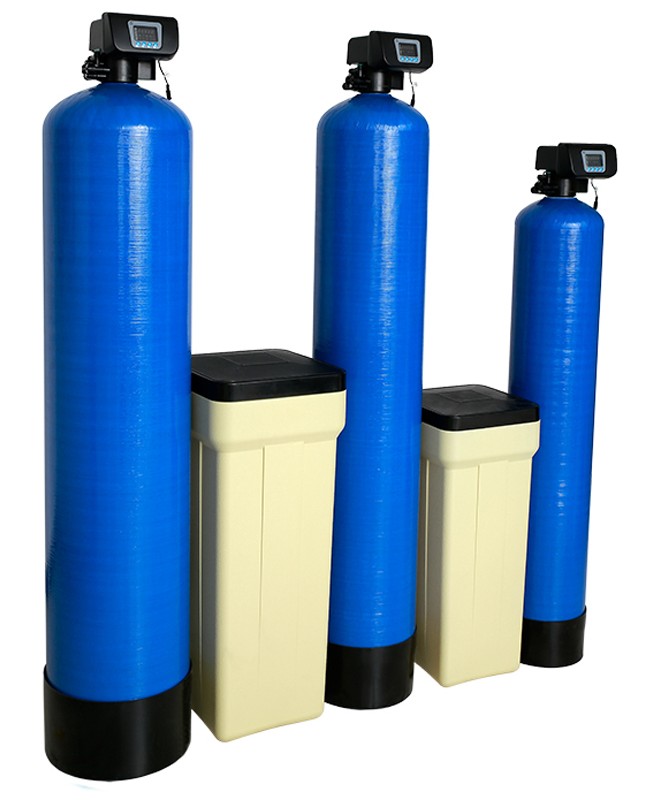

A water softener uses strong acid cation resin to exchange hardness minerals, mainly calcium and magnesium, for sodium. The system then regenerates with salt brine on a set time or after a metered treated-water volume. DSTC builds softeners around Clack WS1 control valves (single 'EI' for simplex units, twin 'TT' for duplex/twin-alternating units), with strong acid cation resin of Indian (Doshin) and German origin supplied in 25 L bags. The systems use FRP mineral tanks in eleven sizes from 10x54 up to 63x83 inch, paired with 100, 200, 300 or 350 L brine tanks and softener salt in 25 kg bags. DSTC helps select the correct tank size, resin volume and configuration, supplies the complete unit, and supports ongoing operation with replacement resin and salt.
Applications
- •Boiler feed water softening to stop scale in boilers, steam lines and heat exchangers
- •RO pre-treatment to protect membranes from hardness scaling
- •Cooling tower make-up water conditioning
- •Hot water systems and pipework in hotels, hospitals and residential buildings
- •Laundries, kitchens and process water lines in factories
- •Reducing hardness for commercial and industrial equipment in Jeddah, Riyadh, Dammam, Jubail and Yanbu
Product Range & Specs
- ✓Control valve: Clack WS1 automatic control head, single 'EI' for simplex units and twin 'TT' for duplex/twin-alternating units
- ✓Softening media: strong acid cation resin, Indian (Doshin) origin and German origin, supplied in 25 L bags
- ✓FRP mineral/resin tanks in eleven sizes (diameter x height, inch): 10x54, 14x65, 16x65, 18x65, 20x69, 24x72, 30x72, 36x72, 42x72, 48x72 and 63x83
- ✓Brine (salt) tanks in 100, 200, 300 and 350 L, with softener salt supplied in 25 kg bags
- ✓Configurations: simplex (single tank), twin/duplex for continuous soft water, and a compact all-in-one softener for small flows
- ✓Support: tank and resin sizing, valve selection, installation guidance and replacement resin and salt supply
Product Summary
A water softener removes calcium and magnesium hardness by ion exchange, protecting boilers, RO membranes, heat exchangers and pipework from scale. DSTC supplies water softeners in Saudi Arabia built on Clack WS1 control valves, strong acid cation resin and FRP tanks from 10x54 up to 63x83 inch, in simplex and twin/duplex configurations. To size and quote, send your feed water hardness, required soft-water flow and daily operating hours.
Available Brands
Frequently Asked Questions
What size water softener do I need?+
It depends on feed water hardness, required soft-water flow and volume used between regenerations. DSTC sizes the resin volume and selects the FRP tank from 10x54 up to 63x83 inch to match your duty.
What is the difference between a simplex and a twin/duplex softener?+
A simplex unit uses one tank with a Clack WS1 'EI' valve and goes offline briefly during regeneration. A twin/duplex unit uses two tanks with a Clack WS1 'TT' valve so one tank stays in service while the other regenerates.
Which softening resin does DSTC supply?+
DSTC supplies strong acid cation resin for softening, in Indian (Doshin) and German origin, packed in 25 L bags. We advise the resin volume based on tank size and hardness load.
How much salt does the softener use and what salt do you supply?+
Salt use depends on hardness, resin volume and regeneration frequency. DSTC supplies softener salt in 25 kg bags and matches a 100, 200, 300 or 350 L brine tank to your unit.
Do you supply spare parts and replacement components for existing softeners?+
Yes. DSTC supplies Clack WS1 control valves, strong acid cation resin, softener salt, FRP tanks and brine tanks separately for rebuilds or upgrades.
