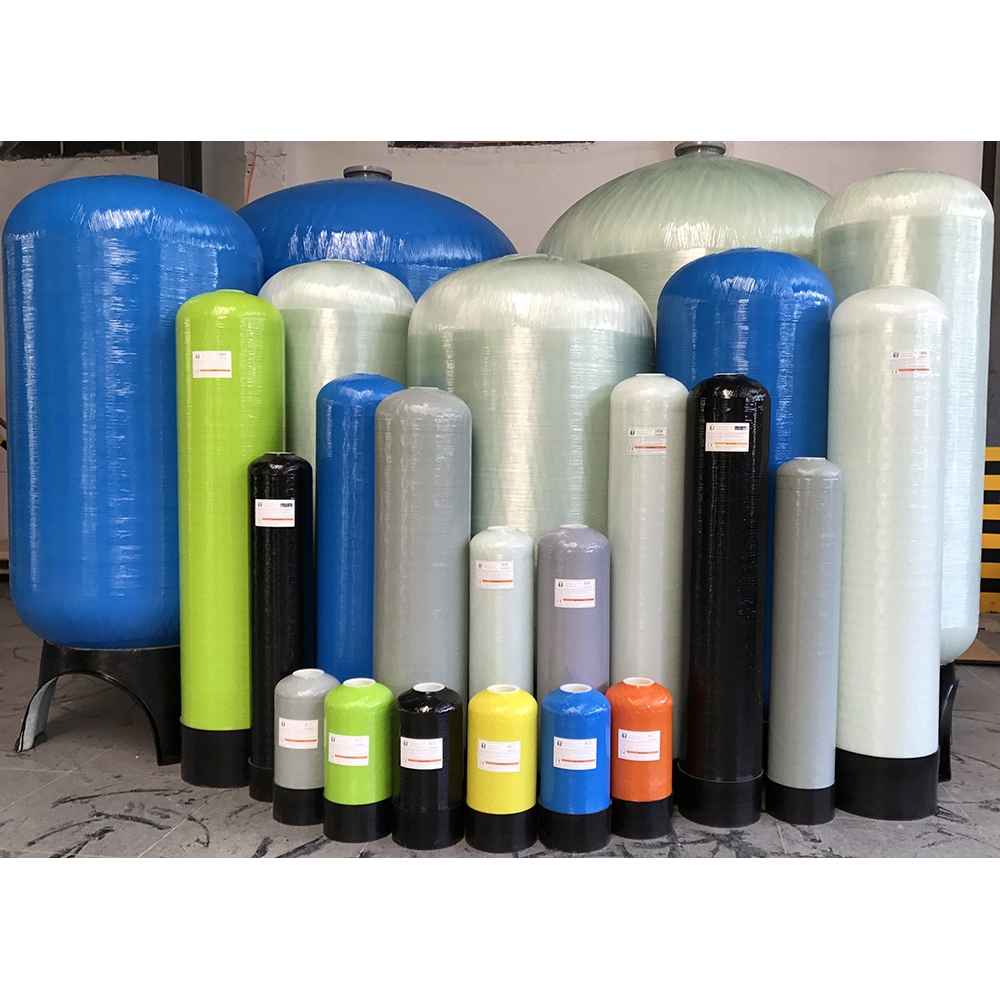

FRP Filter Tanks (Fiberglass Media Vessels)
خزانات فلاتر FRP (أوعية وسائط فايبرجلاس)
Product Description
FRP filter tanks are selected by flow, media type, bed depth and valve mounting, not by size alone, and DSTC matches the vessel to the full filter assembly. We help match tank size to flow and media, select top-mount or side-mount configuration, and confirm the correct internals so the vessel is ready to load and run.
For quotation, send media type, required service flow, tank size, top-mount or side-mount, control valve or connection, quantity and delivery city.
Overview
An FRP filter tank holds filter media in filtration or softening systems. The right tank depends on media type, service flow, bed depth, freeboard and valve mounting. DSTC stocks 10x54, 14x65, 16x65, 18x65, 20x69, 24x72, 30x72, 36x72, 42x72, 48x72 and 63x83 inch tanks in top-mount and side-mount versions, supplied with internal distributor and laterals.
Applications
- •Sand and multimedia filter vessels for RO pretreatment and turbidity removal
- •Activated carbon filter tanks for dechlorination and taste and odor removal
- •Water softener resin tanks for hardness removal in boilers, cooling and process water
- •Iron and manganese removal filters on well water supplies
- •Point-of-entry and skid-mounted filtration for factories, compounds and hotels
- •Replacement vessels for existing filter and softener units across Jeddah, Riyadh, Dammam, Jubail and Yanbu
Product Range & Specs
- ✓Construction: fiberglass-reinforced plastic (FRP) pressure vessels for filtration and softening duty
- ✓Sizes stocked (diameter x height, inch): 10x54, 14x65, 16x65, 18x65, 20x69, 24x72, 30x72, 36x72, 42x72, 48x72, 63x83
- ✓Mounting: available in top-mount and side-mount configurations to suit your control valve
- ✓Internals: supplied with internal distributor and laterals for even flow and media retention
- ✓Media duty: suitable for sand, multimedia, activated carbon and softener resin
- ✓Support: DSTC helps match tank size, mounting and internals to your media type and service flow
Product Summary
FRP filter tanks are fiberglass-reinforced pressure vessels that hold media such as sand, multimedia, activated carbon or softener resin. DSTC supplies them in Saudi Arabia in sizes from 10x54 up to 63x83 inch, in top-mount and side-mount versions, complete with internal distributors and laterals. To quote, send media type, required flow and valve or mounting arrangement.
Frequently Asked Questions
What sizes of FRP filter tanks does DSTC stock?+
DSTC stocks FRP filter and softener tanks from 10x54 up to 63x83 inch.
Can these tanks be used for both filtration and softening?+
Yes. The same FRP vessels are used for sand, multimedia, carbon and softener resin; the media and valve setup change.
Do the tanks come with internal distributors and laterals?+
Yes. DSTC supplies the tanks with internal distributor and laterals fitted.
What is the difference between top-mount and side-mount tanks?+
Top-mount valves sit on top of the tank. Side-mount valves connect to the side and are common on larger vessels or low-headroom sites.
Does DSTC deliver FRP filter tanks across Saudi Arabia?+
Yes. DSTC supplies FRP filter and softener tanks across Saudi Arabia, including Jeddah, Riyadh, Dammam, Jubail and Yanbu.
